Brake Duct

3D Printed Brake Ducts

Mounting flange has four oversized 3/16" holes to allow for thru bolt or expanding rivet with backup washer installation.

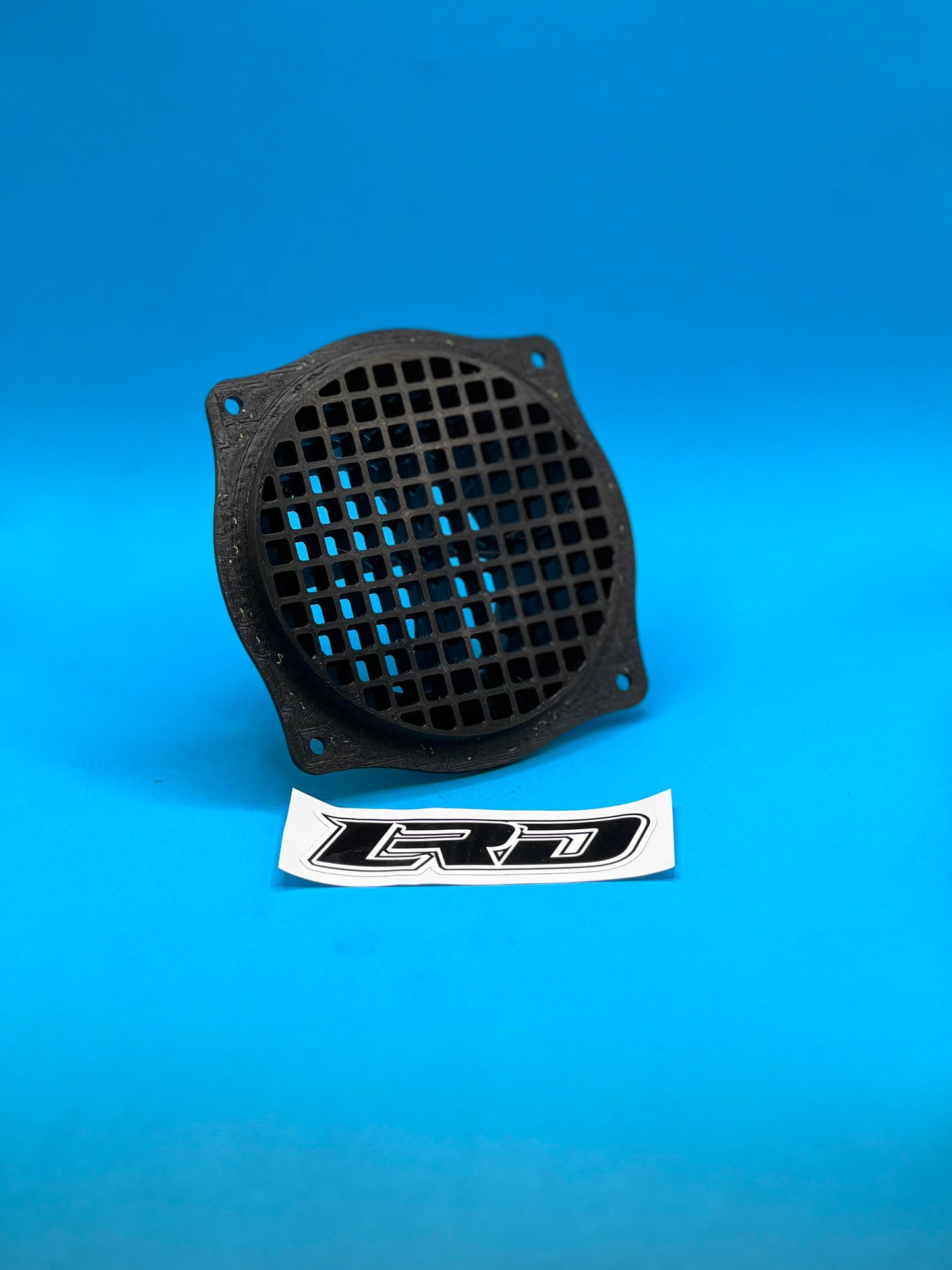

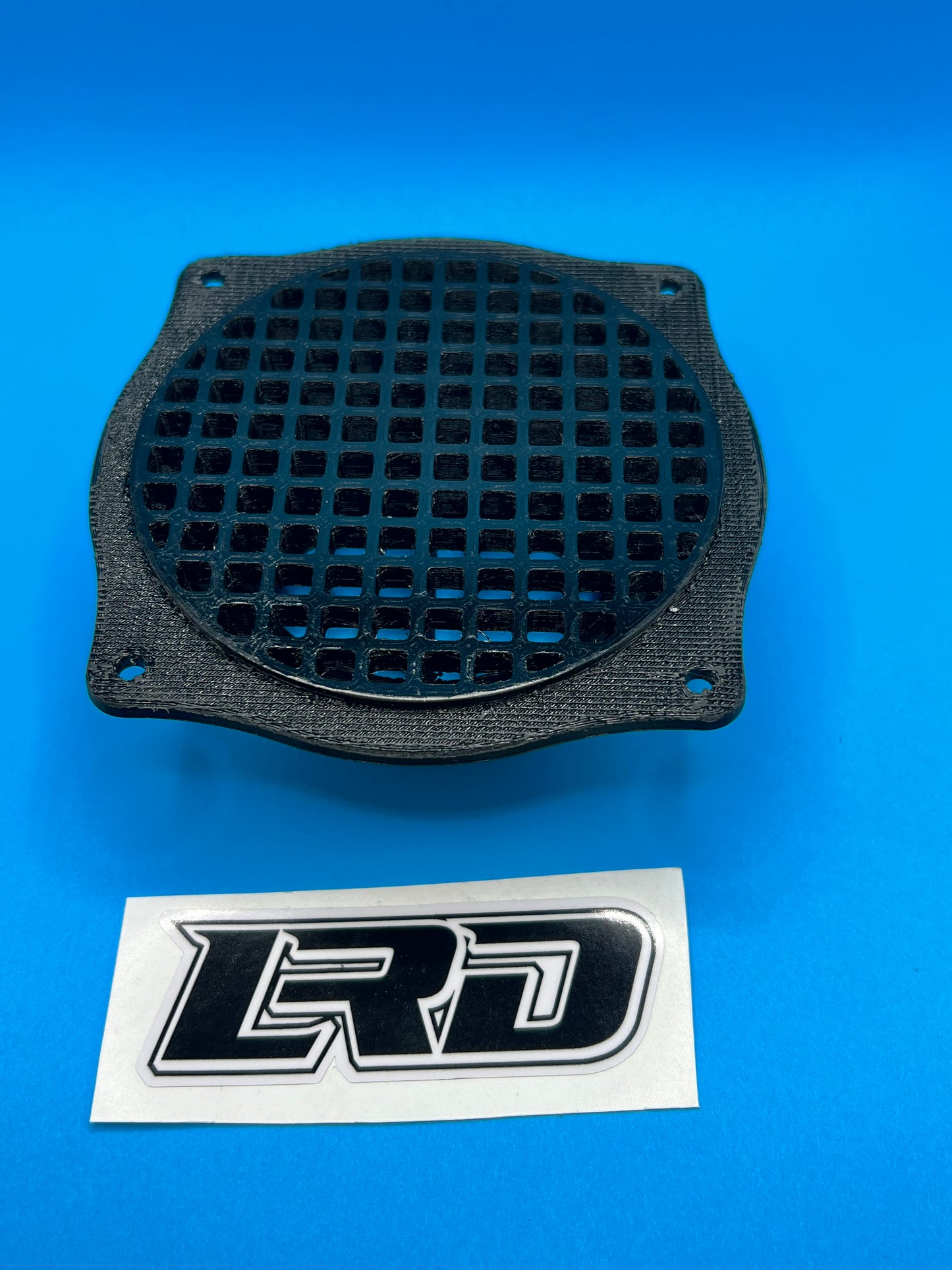

- 3" Intake OD to 3" hose Flat Mount- Mounting flange perpendicular to hose mount.

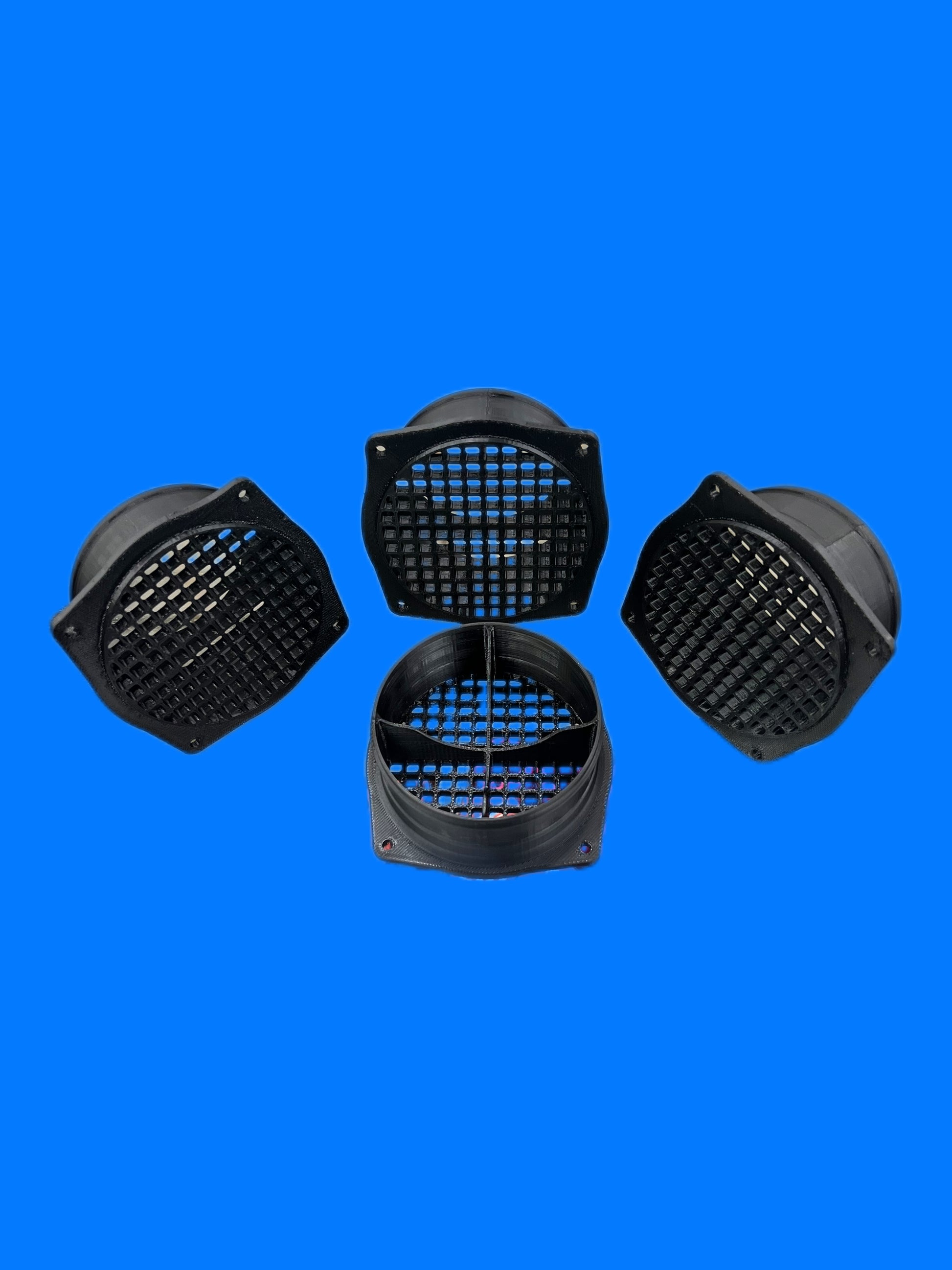

Inlet pattern options:

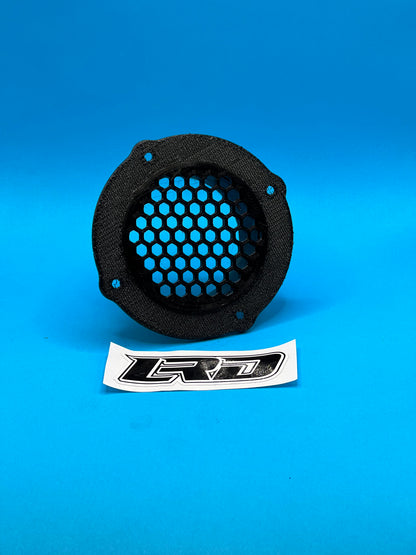

• Hex

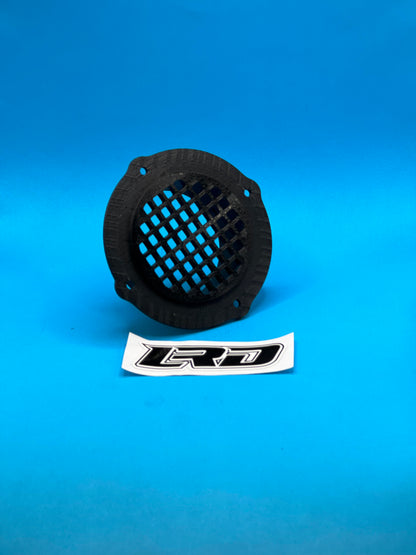

• Square

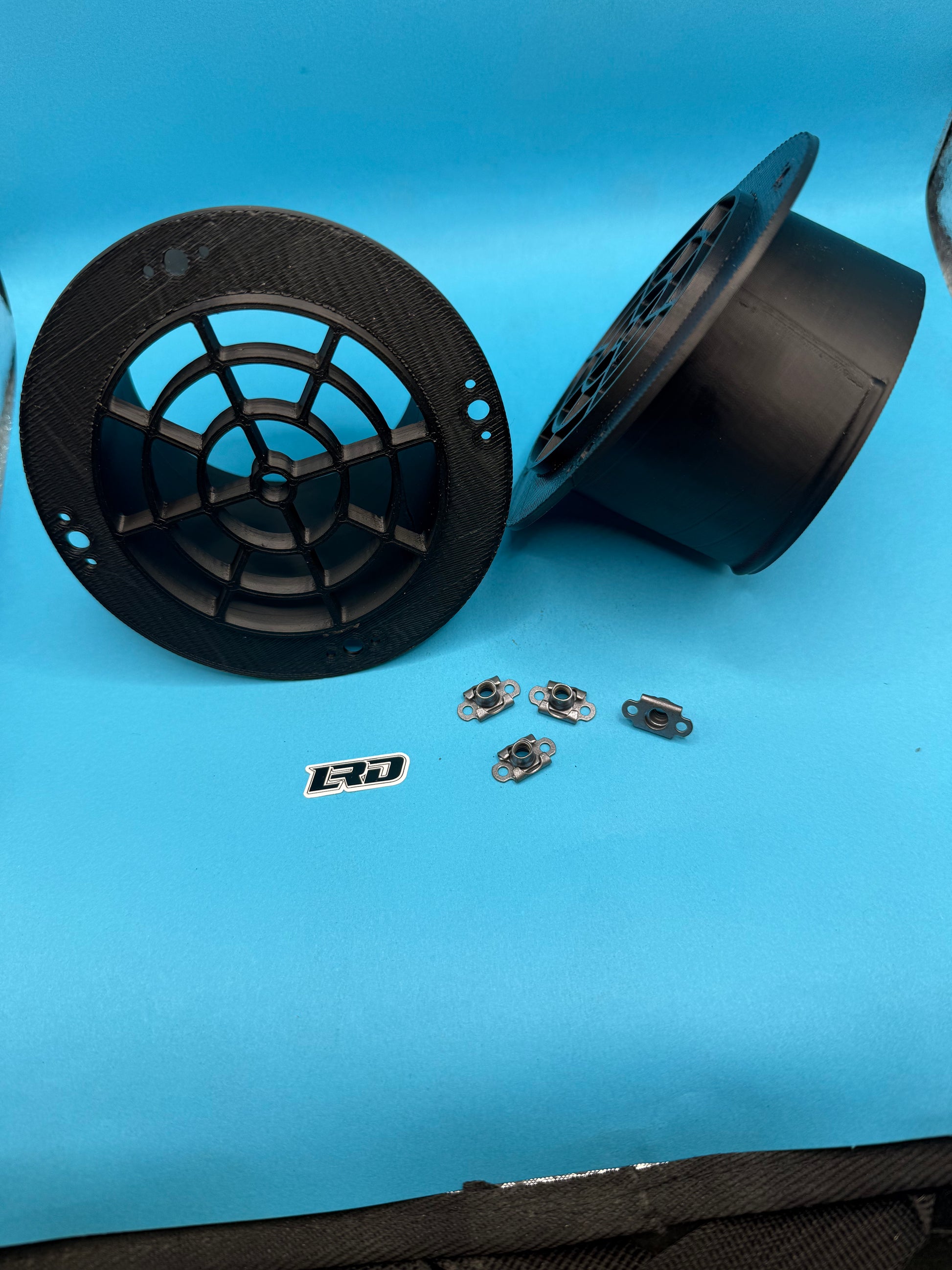

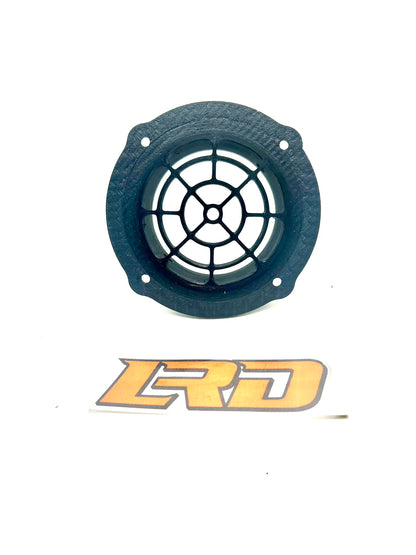

• Bullseye

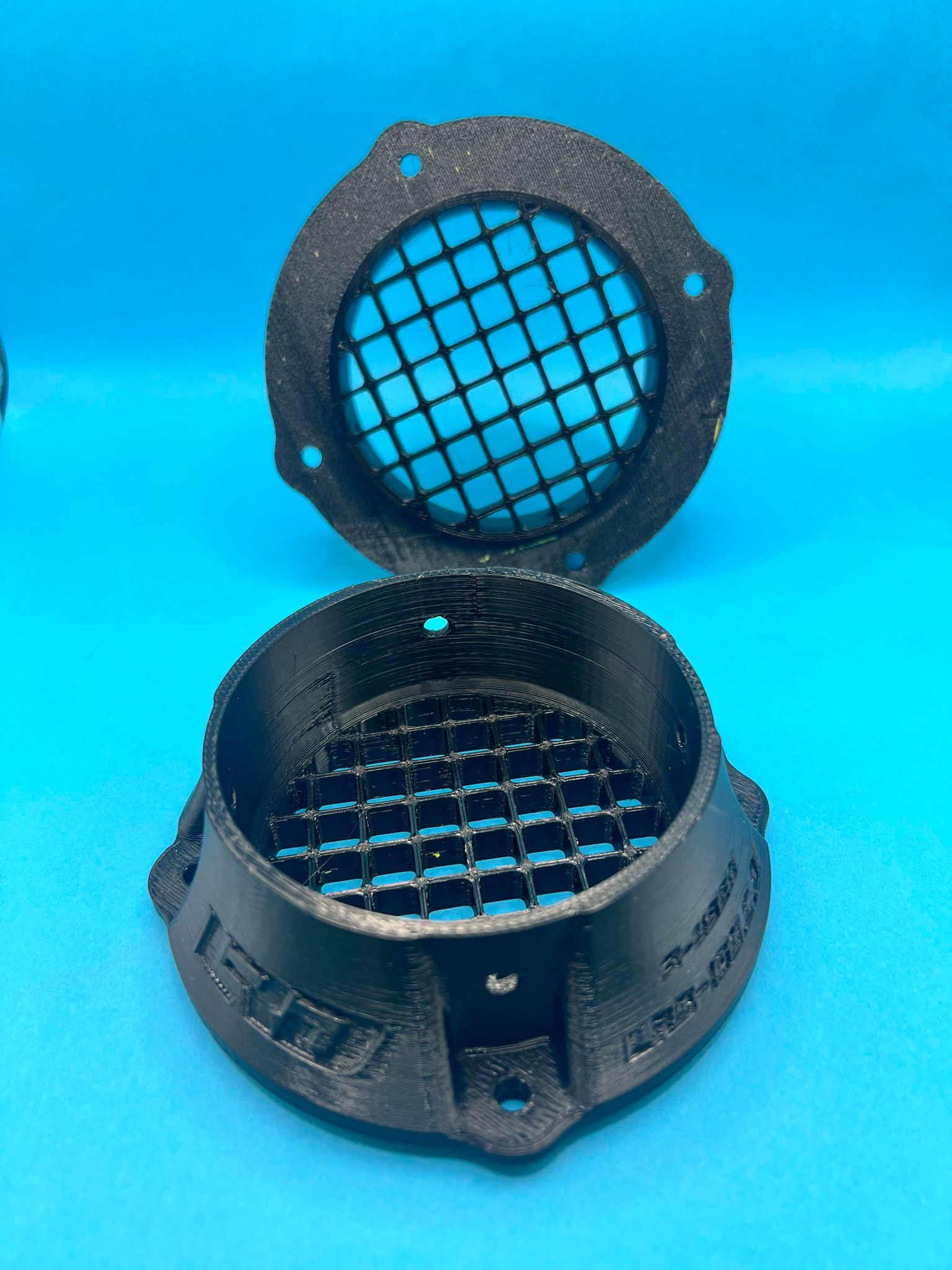

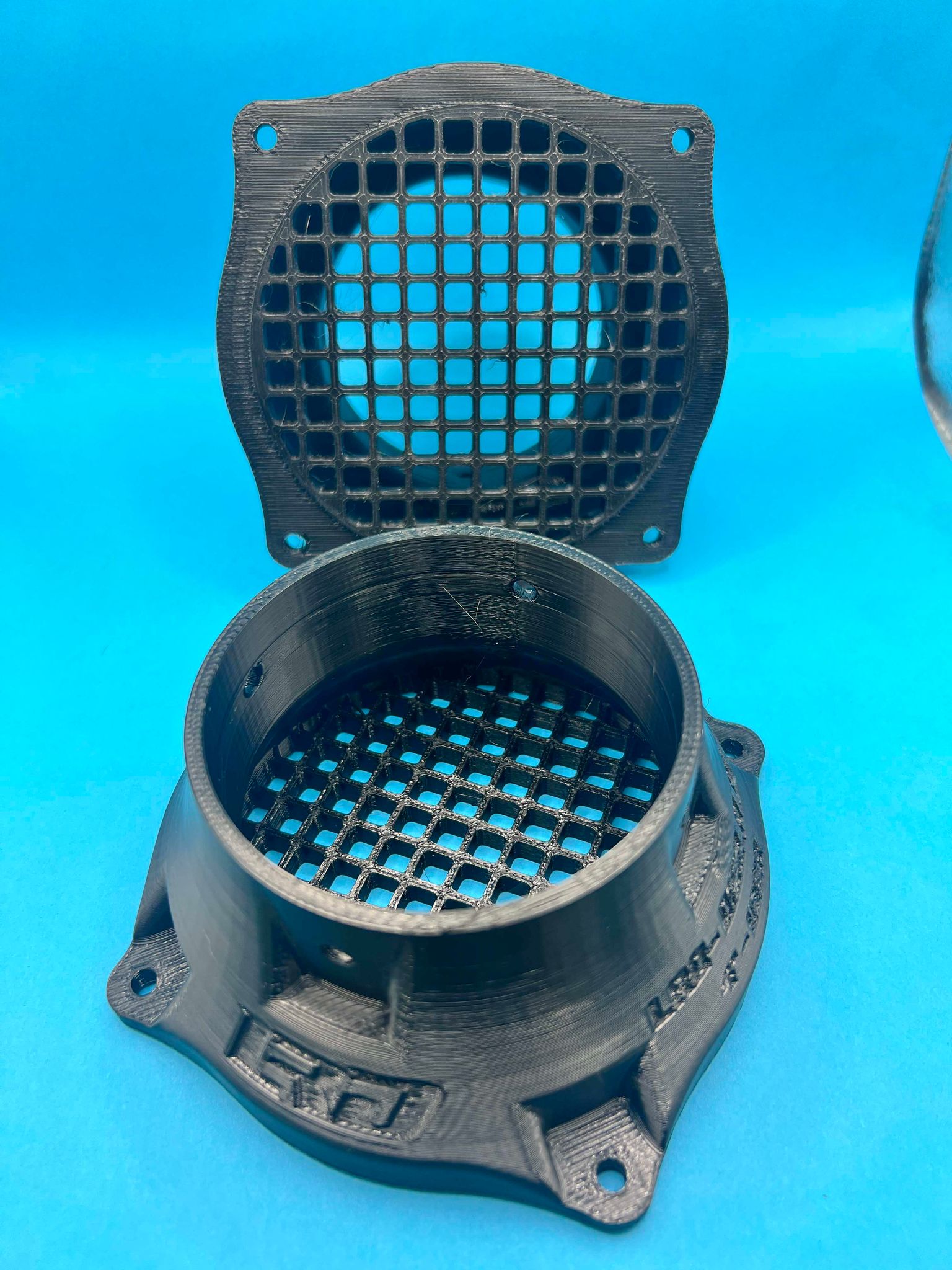

- 3" Intake OD to 3" hose  Angled Mount - designed to mount on angled ABC traditional noses.  Straighter air flow, eliminate hose binding,  and decrease strain on mounting surface increasing longevity.

Inlet pattern options:

• Square
• Bullseye

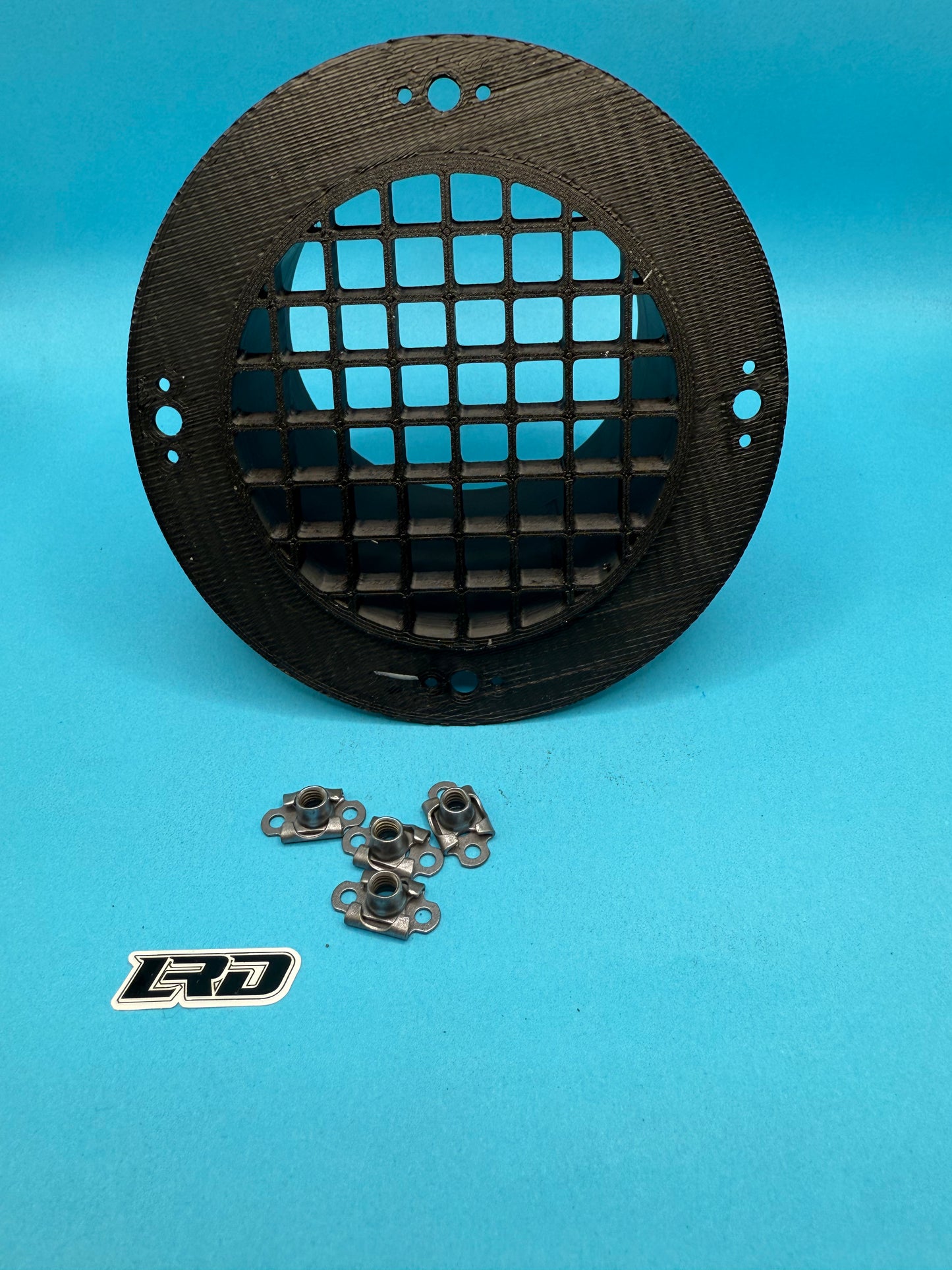

- 4"Intake OD to 3" hose with square inlet pattern

Inlet shoulder depth options for the inlet to sit flush with the nose:

• Composite- TA2 (TRANS AM)-  Grill shoulder to allow grill to sit flush on the thicker composite noses.
• Plastic Late Model-  Made to mount flush with the front face of most Late model bodies. Both Five Star Next Gen and  5 Star/ABC Traditional Noses
